This case study covers the continuation of the conversion of the HELM (Helping Engineers Learn Mathematics) workbooks into STACK resources and quizzes. This project has previously been worked on by others (see this 2021 Case Study and this 2023 Case Study), with our additions being completed over a 12-week summer internship facilitated by the University of Edinburgh’s Employ.ed on Campus Internship Programme, being managed by Konstantina Zerva, and with additional contributions from Hayden Maudsley-Barton.
Topics covered
Throughout the duration of the internship, HELM workbooks 27-29 were converted, alongside workbook 17. Workbooks 27-29 cover the pre-honours level Severable Variable Calculus topics required for an undergraduate engineering degree. Workbook 17 focuses on graphing in conic and polar coordinate systems and had been left undone by previous interns due to the graphing requirement for the workbook. These sections were prioritised as they were noted as being of most use to course organisers. Below are some highlights of questions and solutions.

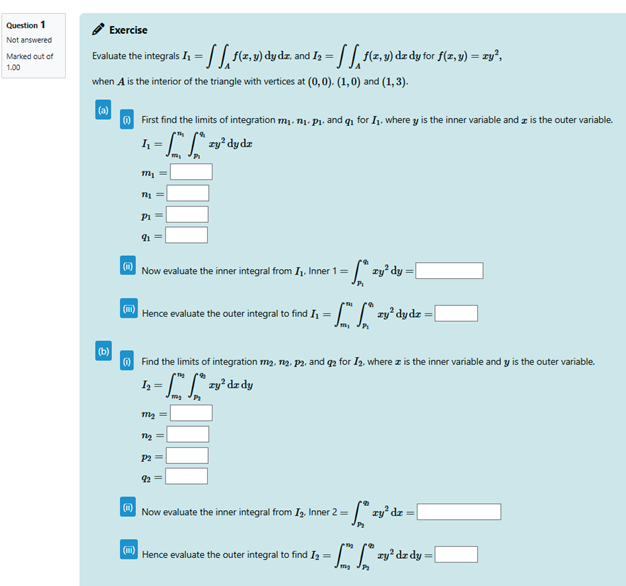

A question covering the concept of changing the order of integration in double integrals

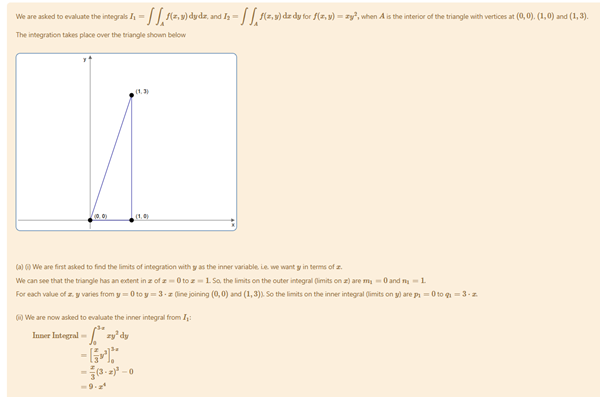

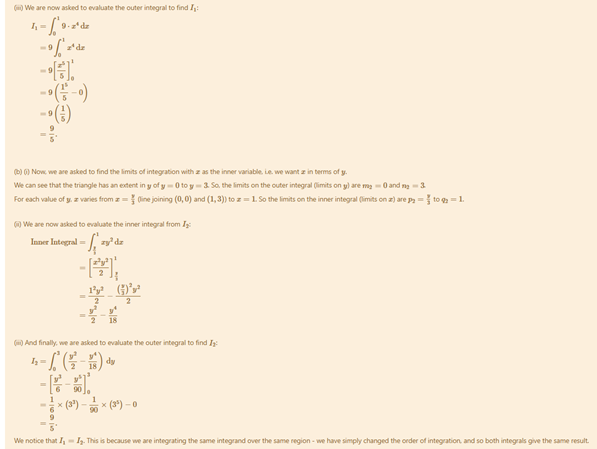

The fully worked solution to question covering the concept of changing the order of integration in double integrals

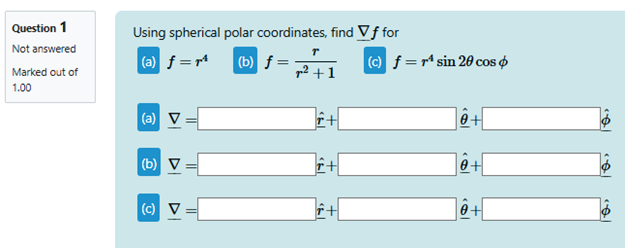

A question covering finding the gradient of a vector field

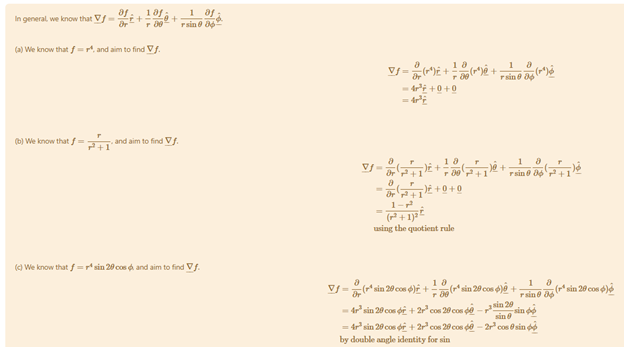

The fully worked solution to question covering the gradient of a vector field
JSXGraph
A largely new addition to the conversion this summer has been our use in STACK of JSXGraph, a JavaScript library used for interactive graphs, plotting, and geometry. We aimed to use JSXGraph wherever possible, especially in the several variable calculus sections, in order to increase the interactivity of the STACK quizzes and to help students with visualising difficult concepts or shapes. Below is an example of a JSXGraph question that was created.

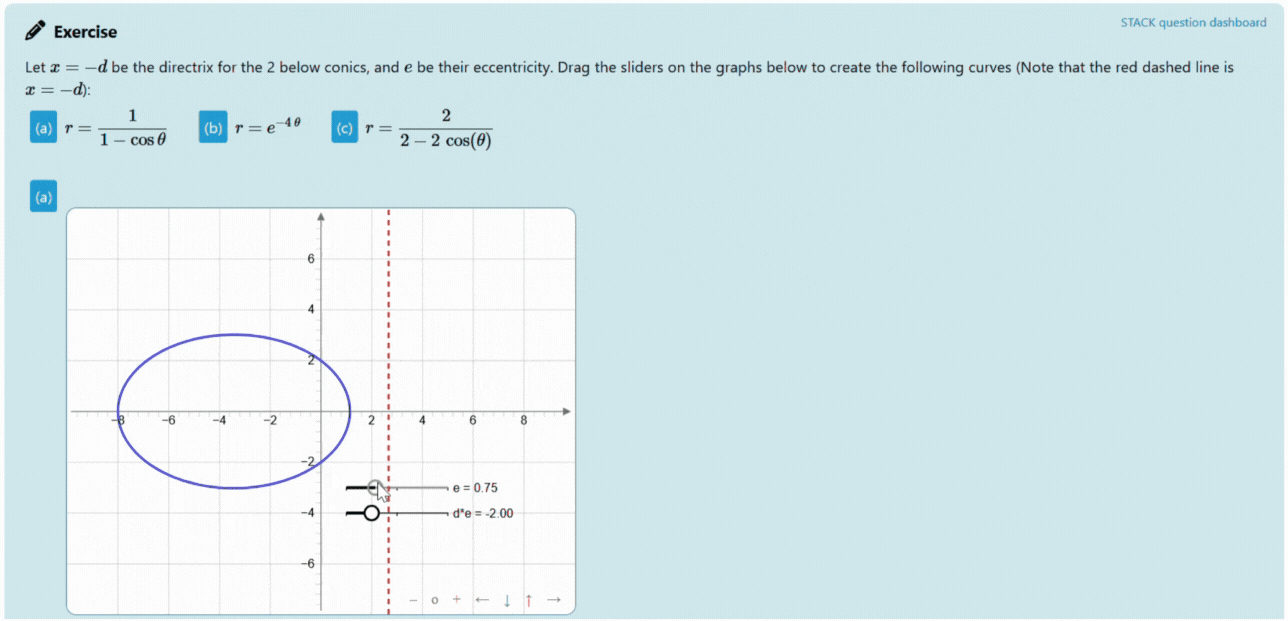

Showcasing an interactive question on eccentricity using JSXGraph sliders for the student to input their answer
Reflections and Conclusion
We both found this internship to be a challenging but extremely rewarding experience. Producing mathematical teaching material through STACK has been a great opportunity for us to learn an array of technical skills from scratch, while simultaneously contributing to a worthwhile project. The steep learning curve encountered when using JSXGraph has meant that a large amount of content had been formerly left unresolved, and so we’re glad to have contributed by helping to fill in the gaps in existing content. Furthermore, we have greatly developed our mathematical programming abilities, gaining experience in HTML, Maxima, LaTeX, and JavaScript.
It should be noted that the work converting HELM to a STACK resource is nowhere near finished, and since the work is available as an Open Education Resource (OER), further contributions will help universities and student engineers across the world.
We look forward to hearing from students on the Engineering Mathematics courses at Edinburgh University who will have access to these quizzes as additional self-study content on the course.
Update: All HELM-STACK content is available through the STACK library, from the STACK Version 4.11.1 (2026010500) and onwards.
